Product Description
For 6x30mm FUSES
- Withstanding Voltage:>AC2000V/1min
- lnsulation Resistance:≥100mΩ DV500V
- Electrical:Rated at 30A 250V AC
- Insulating Body: PVC/rubber
- Terminals:brass
- Operation temperature:-50°C~185°C
Fuses are optional.
| Item | Waterproof tube fuse holder |
| Mouting Style | Inline |
| Max Rating | 30A 250V |
| Body Color | black |
| House material | pvc/rubber |
| Terminal material | brass |
| Body | 61mm |
| Body diameter | 17mm |
| Protection Grade | IP67 |
Fearures of the Waterproof 6x30 In-line Fuse Holder
1.Easy installation: reasonable deisgn with small volume.
2.Safety: Fire retardant bakelite body and UL standard PVC cable ensure safe operation.
3.High reliability: finely made contacts and structure ensures the fuses are in full contact with the terminals.
Wide range and customized services
| Fuses Amperes | 0.2A~30A (UL lISTED) |
| Wire Gauge | 18AWG 16AWG 14AWG 12AWG (UL1015 PVC) |
| Custom Cable | length & color (upon request) |
This is an in line fuse. Just cut the wire where you want the fuse to go and then slide the wire into the fuse jacket holes on each end and crimp. You're done. Takes less than a minute to install.
| Structure | female and male body, terminal contacts x2, spring, wire, fuse |
| Electrical rating | 250V 30A max |
| Body Material | PVC/Rubber |
| Contact Material | Brass |
| Wire Material | PVC and tinned copper |

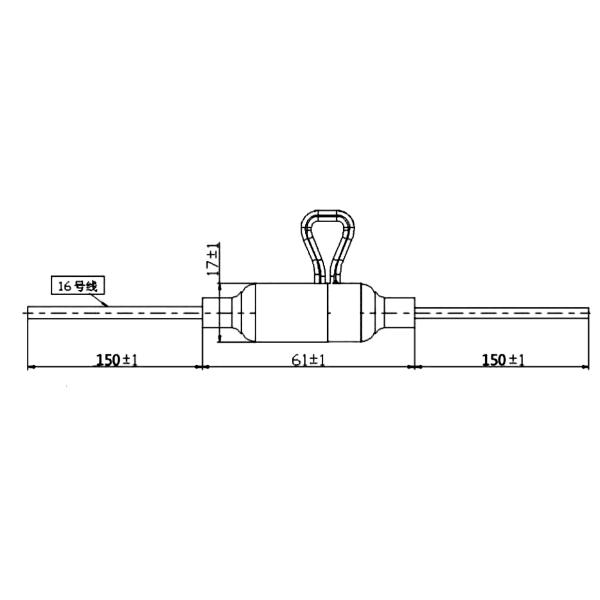

Drawing
Please allow 1-3mm tolerance due to manual measurement.
Applications
Electronic boards, Car, Boat, Truck, SUV, Motorcycle, etc.
Standard Package:
depends on the cable spec
Shipping Term:
EXW, DDU, DDP, C&F, FOB
Shipping Methods:
International Express, By Air, By Sea
Selection of the Fuse and Holder Solution
The first step is to answer the following questions:
- Will the fuse need to accessible for replacement?
- How often will the fuse need to be replaced?
- Should the end customer of the appliance have access to change the fuse?
- Should the fuse only be accessible from outside the appliance?
- How much is available to spend on safety and reliability?
5.1.2. Requirements and characteristics
The most important standards for fuse-holders, which specify requirements, characteristics and testing methods are:
- IEC-publication 257 (1968) and Amendment no. 2 to this publication dated January 1989.
- UL-standard no. 512.
Q: Are you trading company or manufacturer ?
A: We are a fuse product factory.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock, 5-10 days if the goods not in stock, according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
